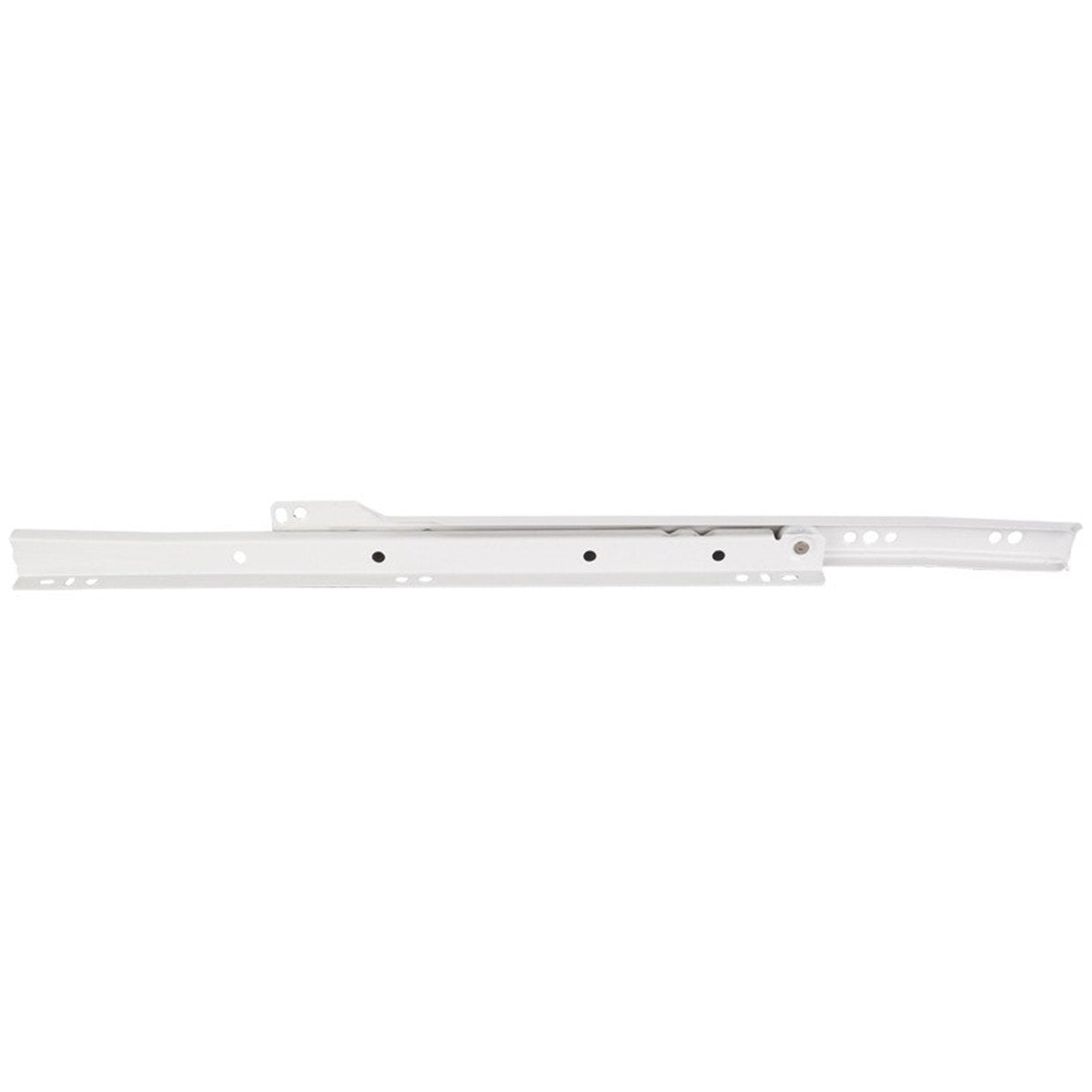

Hardware Resources Cream White Builder Pack Self-closing Drawer Slide

An economy self-closing slide designed specifically for use in either frameless or face frame applications. Cream White Builder Packed Self-closing Drawer Slide. Each set CL/CR/DL/DR tap together; 25 sets in one box.

Benefits & Features:

• 3/4" extension slide travel
• 75 lb load rating
• Side or bottom mounting style for frameless and face frame cabinetry
• POM synthetic plastic roller, cylindrically ground for smooth and quiet action
• Self-closing with positive stop prevents drawer bounce-back and roll out
• 1-7/16" side profile height
• 1/2" side spacing
• 1.0 mm hot rolled steel material
• Epoxy powder coated cream white finish
• 32 mm system hole pattern
• 6.3 mm euro screw or #6 undercut screw is recommended

Product Details:

• Configurable Collection: Economy Cream Self-closing White Builder Pack Slid
• Finish: White
• Finish Group: Non Metal
• Primary Material Details: Steel
• Country of Origin: China
• Ship Type: FedEx
• Warranty Period: Lifetime

Measurements:

• Extension (in): 3/4 Extension

12" (300 mm)L
• Dimensions: 12" (300 mm)L x 1-7/16"H
• Weight (lbs): 0.62

14" (350 mm)L
• Dimensions: 14" (350 mm)L x 1-7/16"H
• Weight (lbs): 0.69

16" (400 mm)L
• Dimensions: 16" (400 mm)L x 1-7/16"H
• Weight (lbs): 0.82

18" (450 mm)L
• Dimensions: 18" (450 mm)L x 1-7/16"H
• Weight (lbs): 0.88

20" (500 mm)L
• Dimensions: 20" (500 mm)L x 1-7/16"H
• Weight (lbs): 0.98
