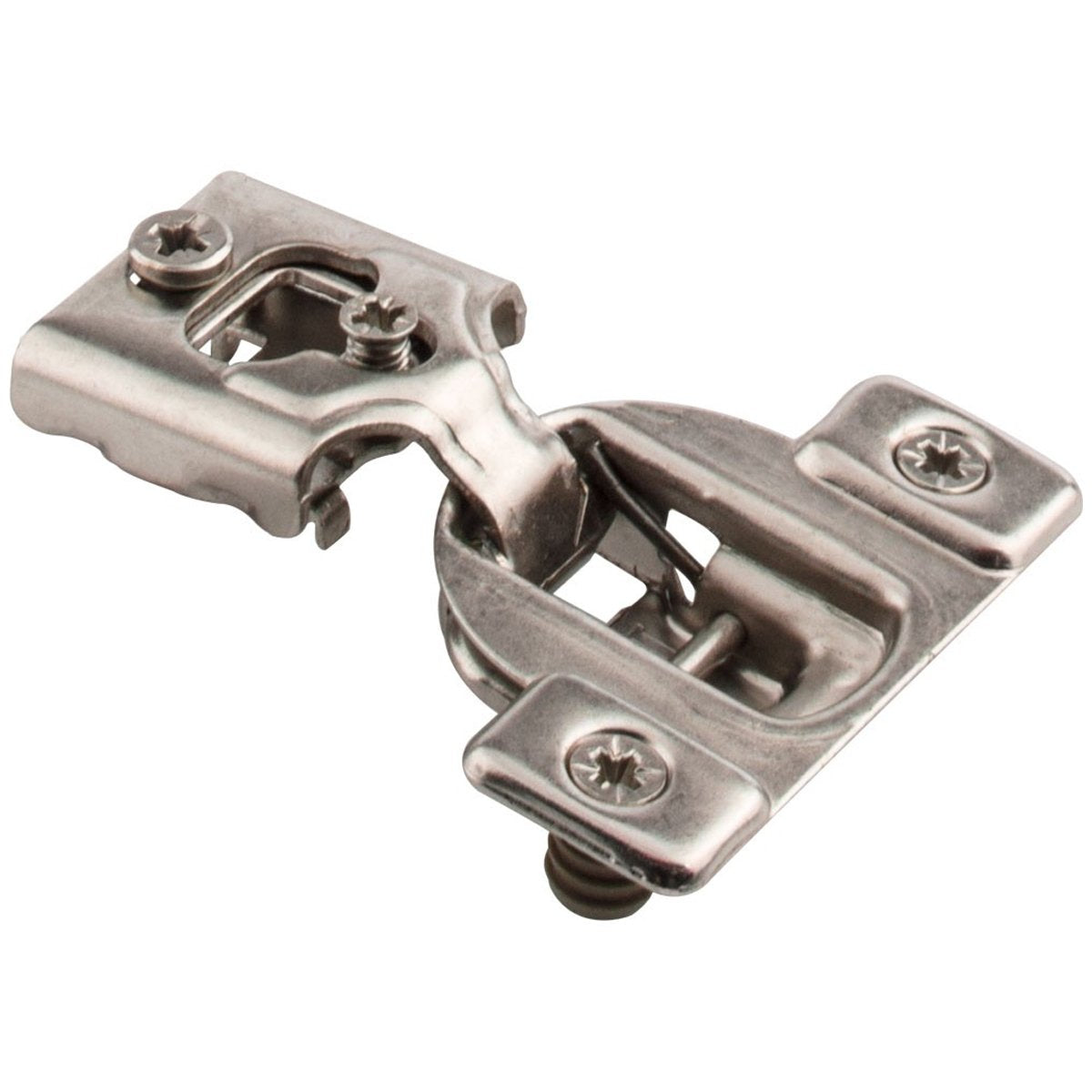

Hardware Resources Economical 2 Cleat 1/2" Overlay Self-close Compact Hinges

Economical 2-Cleat 1/2" Overlay Self-close Cam Adjustable Face Frame Compact Hinge with 8 mm Dowels.

Benefits & Features:

• Cold rolled steel with nickel plating
• 2-cleat option for face frame material over 3/4"
• 45 mm boring pattern
• #7 x 5/8" pan washer head screw (7X0580WCQ) recommended

Product Details:

• Configurable Collection: Economical Self-close Compact Hinge
• Application: Face Frame
• Finish: Polished Nickel
• Finish Group: Silver/Nickel/Chrome
• Attachment Type: One Piece
• Hinge Adjustment Type: Cam
• Hinge Dowels: Press-in
• Primary Material Details: Steel
• Country of Origin: China
• Certification: Grade 2 ANSI/BHMA Certified to ANSI 50,000 Cycles
• Ship Type: FedEx
• Warranty Period: Lifetime

Measurements:

• Hinge Overlay (in): 0.5
• Hinge Degree of Opening: 105

Weight (lbs): 0.11
