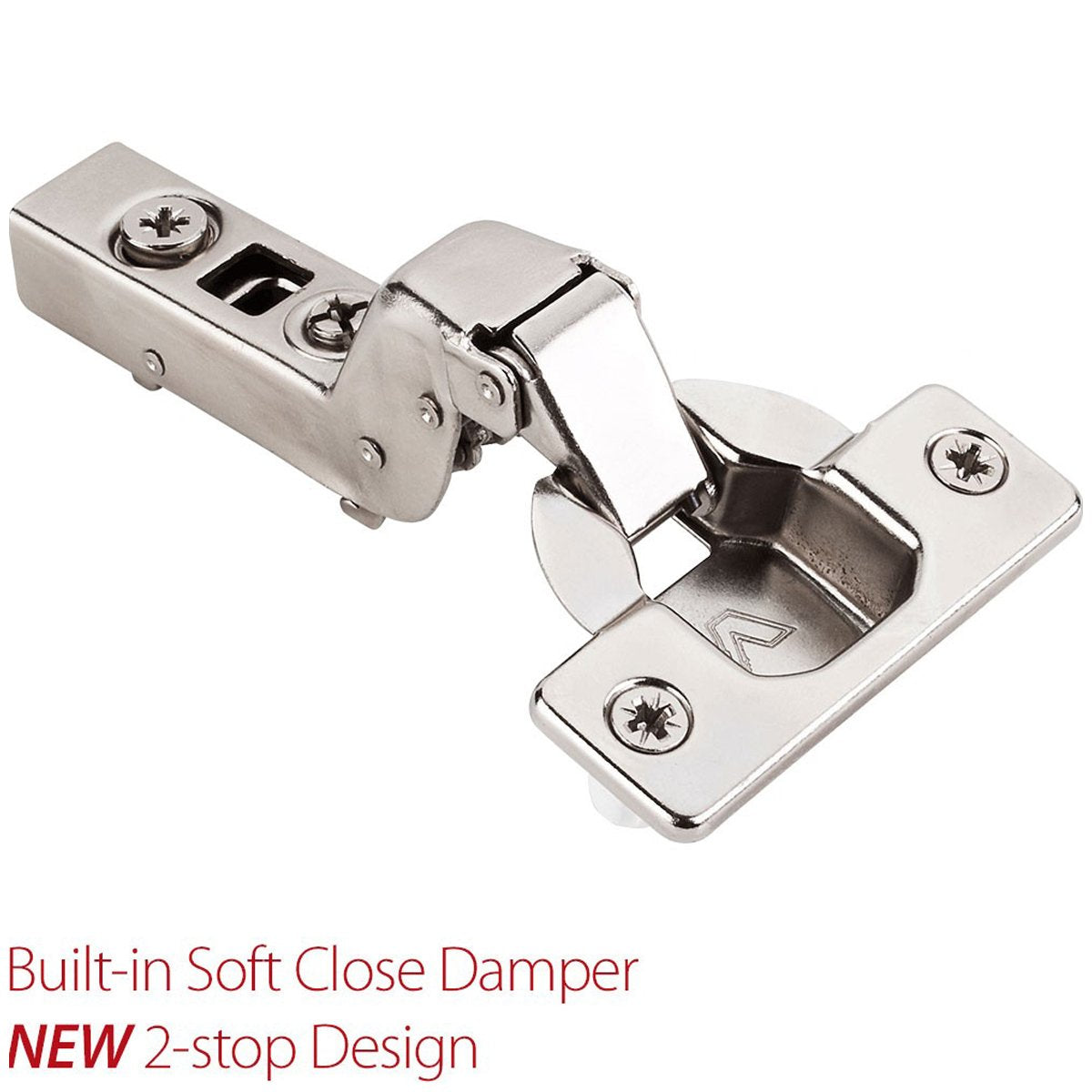

Hardware Resources 110 Degree 15 mm Crank Cam Adjustable Heavy Duty Soft-close Hinge with Press-in 8 mm Dowels

A soft-close European hinge ideal for a wide range of residential and commercial applications. Face frame and frameless compatible. 110 Degree 15 mm Crank Cam Adjustable Heavy Duty Soft-close Hinge with Press-in 8 mm Dowels.

Benefits & Features:

• Heavy duty spring and patented linkage system
• Grade 2 ANSI/BHMA certified to ANSI 50,000 cycles
• All metal concealed damper provides a life time of worry-free use
• 2-stop action
• Hinge and plate provide 6-way adjustability
• Cold rolled steel with nickel plating
• 45 mm boring pattern
• Compatible with 600 series mounting plates
• Heavy duty: ideal for larger doors, heavy usage, as well as standard residential applications
• Lever-top available: Provides toolless installation and removal
• Patented anti-sag stacked linkage: Reduces door sag and provides minimal side-to-side play

Product Details:

• Configurable Collection: Heavy Duty Soft-close European Hinge
• Finish: Polished Nickel
• Finish Group: Silver/Nickel/Chrome
• Attachment Type: Knock-in
• Hinge Adjustment Type: Cam
• Hinge Adjustment: 6-Way Adjustment
• Hinge Dowels: Press-in
• Hinge Overlay: Inset
• Primary Material Details: Steel
• Country of Origin: China
• Certification: Grade 2 ANSI/BHMA Certified to ANSI 50,000 Cycles
• Ship Type: FedEx
• Warranty Period: Lifetime

Measurements:

• Hinge Degree of Opening: 110
• Hinge Crank Amount (mm): 18
• Hinge Boring Hole Pattern or Mount Centers (mm): 45

Weight (lbs): 0.21
