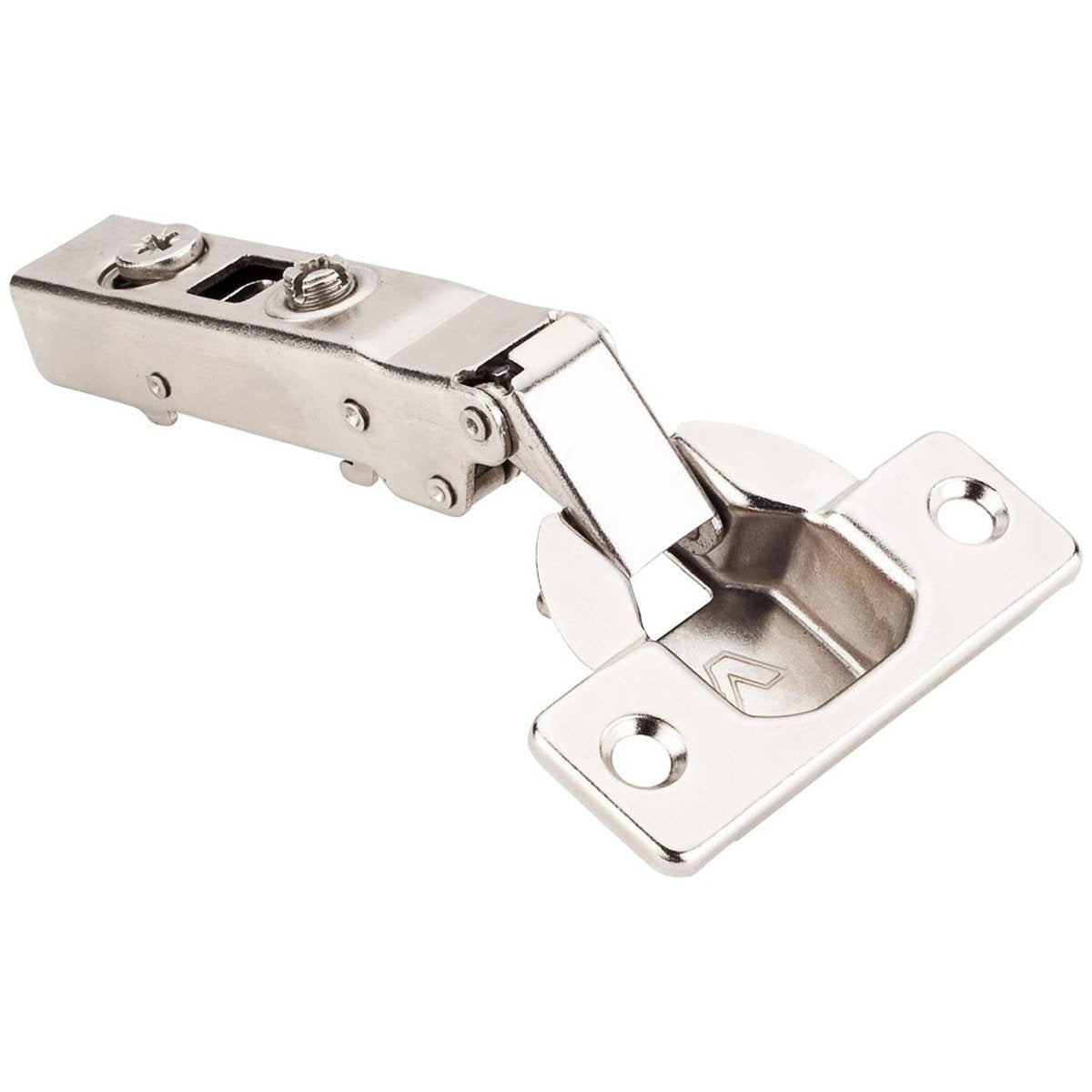

Hardware Resources 125 Degree 0 mm Crank Cam Adjustable Heavy Duty Soft-close Hinge without Dowels

$4.04
SKU 700.0U85.05

Free shipping on most orders*
Typically leaves the warehouse in 1-2 business days*.

A soft-close European hinge ideal for a wide range of residential and commercial applications. Face frame and frameless compatible. 125 Degree Soft-close Basic Clip-on Cam Adjustable Concealed European Hinge. 0 mm Crank without Dowels.

Benefits & Features:

  • Heavy duty spring and patented linkage system
  • Grade 2 ANSI/BHMA certified to ANSI 50,000 cycles
  • All metal concealed damper provides a life time of worry-free use
  • Hinge and plate provide 6-way adjustability
  • Cold rolled steel with nickel plating
  • 45 mm boring pattern
  • Compatible with 600 series mounting plates
  • Heavy duty: ideal for larger doors, heavy usage, as well as standard residential applications
  • Lever-top available: Provides toolless installation and removal
  • Patented anti-sag stacked linkage: Reduces door sag and provides minimal side-to-side play

Product Details:

  • Configurable Collection: Heavy Duty Soft-close European Hinge
  • Finish: Polished Nickel
  • Finish Group: Silver/Nickel/Chrome
  • Attachment Type: Screw-in
  • Hinge Adjustment Type: Cam
  • Hinge Adjustment: 6-Way Adjustment
  • Hinge Dowels: Without
  • Hinge Overlay: Full
  • Primary Material Details: Steel
  • Country of Origin: China
  • Certification: Grade 2 ANSI/BHMA Certified to ANSI 50,000 Cycles
  • Ship Type: FedEx
  • Warranty Period: Lifetime

Measurements:

  • Hinge Degree of Opening: 125
  • Hinge Crank Amount (mm): 0
  • Hinge Boring Hole Pattern or Mount Centers (mm): 45

Weight (lbs): 0.19
