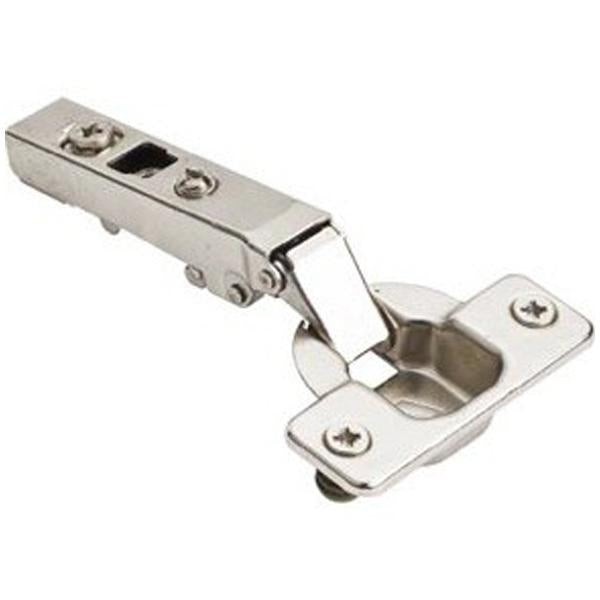

Hardware Resources 90 Degree 0 mm Crank Cam Adjustable Standard Duty Hinge with Press-in 8 mm Dowels

Sold out
Original Price $1.50
Current Price $1.35
SKU 500.0161.75
Availability: translation missing: en.general.icons.icon_check_circle icon Out of stock

Hardware Resources' tried and true standard duty European hinge that provides performance you need with a price you can't resist. 90 Degree Restricted Opening Basic Clip-on Cam Adjustable Concealed European Hinge 0 mm Crank with Dowels.

Benefits & Features:

  • Grade 2 ANSI/BHMA certified to ANSI 50,000 cycles
  • 1-stop action
  • Hinge and plate provide 6-way adjustability
  • Cold rolled steel with nickel plating
  • 45 mm boring pattern
  • Compatible with 400 series mounting plates
  • Lever-top available: Provides toolless installation and removal
  • 6-Way adjustability: Horizontal, depth and vertical with plate

Product Details:

  • Configurable Collection: Standard Duty European Hinge
  • Finish: Polished Nickel
  • Finish Group: Silver/Nickel/Chrome
  • Attachment Type: Knock-in
  • Hinge Adjustment Type: Cam
  • Hinge Adjustment: 6-Way Adjustment
  • Hinge Dowels: Press-in
  • Hinge Overlay: Full
  • Primary Material Details: Steel
  • Country of Origin: China
  • Certification: Grade 2 ANSI/BHMA Certified to ANSI 50,000 Cycles
  • Ship Type: FedEx
  • Warranty Period: Lifetime
  •  *Item Replaces 500.0161.05*

Measurements:

  • Hinge Degree of Opening: 90
  • Hinge Crank Amount (mm): 0
  • Hinge Boring Hole Pattern or Mount Centers (mm): 45

Weight (lbs): 0.14
