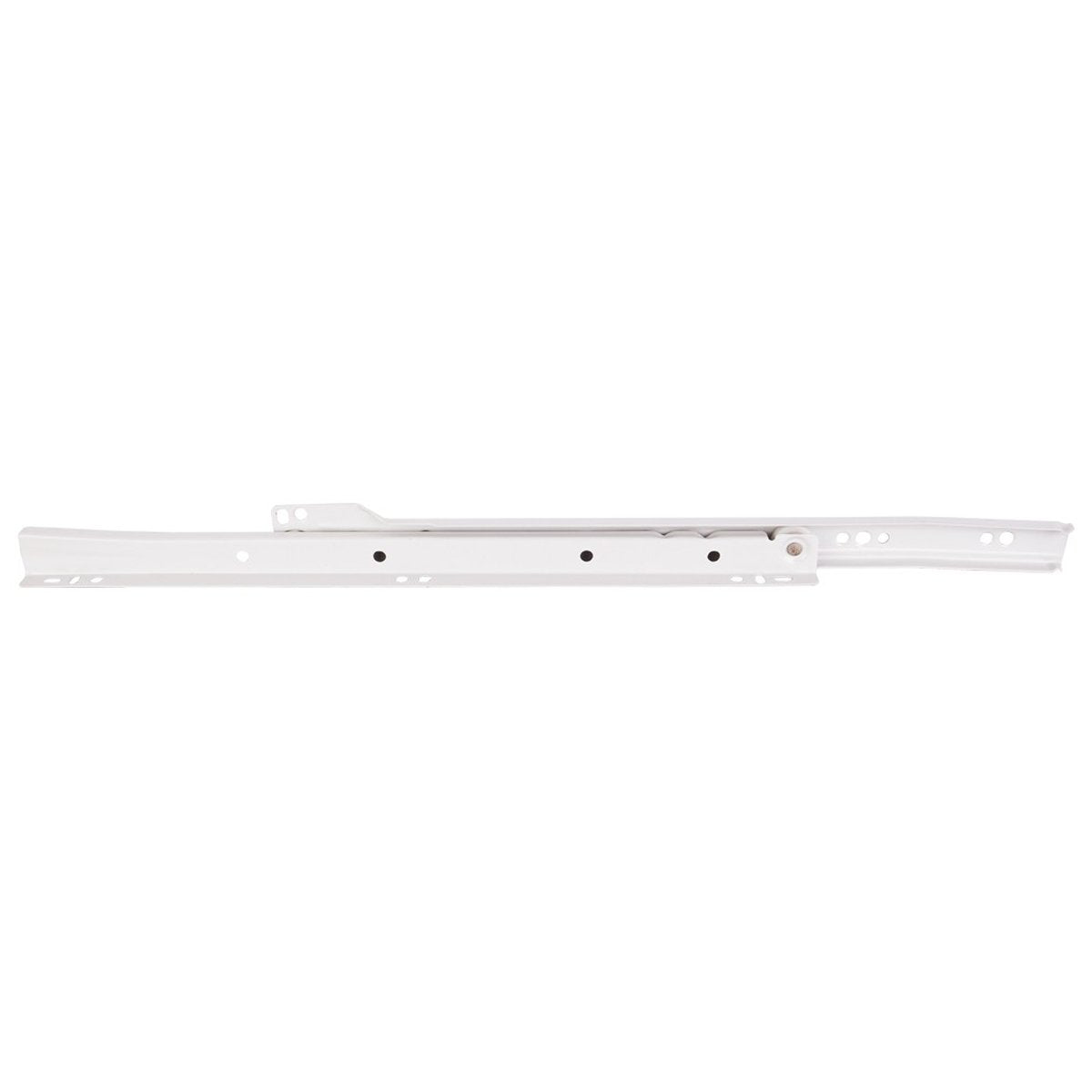

Hardware Resources Cream White Builder Pack Self-closing Slide

$66.38
SKU 5035

Free shipping on most orders*
Typically leaves the warehouse in 1-2 business days*.

A standard duty self-closing slide designed for use in either frameless or face frame applications. Cream White Builder Pack Self-closing Slide.

Benefits & Features:

  • 3/4" extension slide travel
  • 75 lb load rating
  • Side or bottom mounting style for frameless and face frame cabinetry
  • POM synthetic plastic roller, cylindrically ground for smooth and quiet action
  • Positive lock-out on both members
  • Disconnects via lift out
  • Self-closing with positive stop prevents drawer bounce-back and roll out
  • 1-7/16" side profile height
  • 1/2" side spacing
  • 1.0 mm hot rolled steel material
  • Epoxy powder coated cream white finish
  • 32 mm system hole pattern
  • 6.3 mm euro screw or #6 undercut screw is recommended

Product Details:

  • Configurable Collection: Standard Duty Self-closing Cream White Builder Pac
  • Finish: White
  • Finish Group: Non Metal
  • Primary Material Details: Steel
  • Country of Origin: China
  • Certification: ANSI/BHMA
  • Ship Type: FedEx
  • Warranty Period: Lifetime

Measurements:

  • Extension (in): 3/4 Extension
    14" (350 mm)L
  • Dimensions: 14" (350 mm)L x 1-7/16"H
  • Weight (lbs): 0.78
    16" (400 mm)L
  • Dimensions: 16" (400 mm)L x 1-7/16"H
  • Weight (lbs): 0.89
    18" (450 mm)L
  • Dimensions: 18" (450 mm)L x 1-7/16"H
  • Weight (lbs): 1.01
    20" (500 mm)L
  • Dimensions: 20" (500 mm)L x 1-7/16"H
  • Weight (lbs): 1.23
    22" (550 mm)L
  • Dimensions: 22" (550 mm)L x 1-7/16"H
  • Weight (lbs): 1.25
