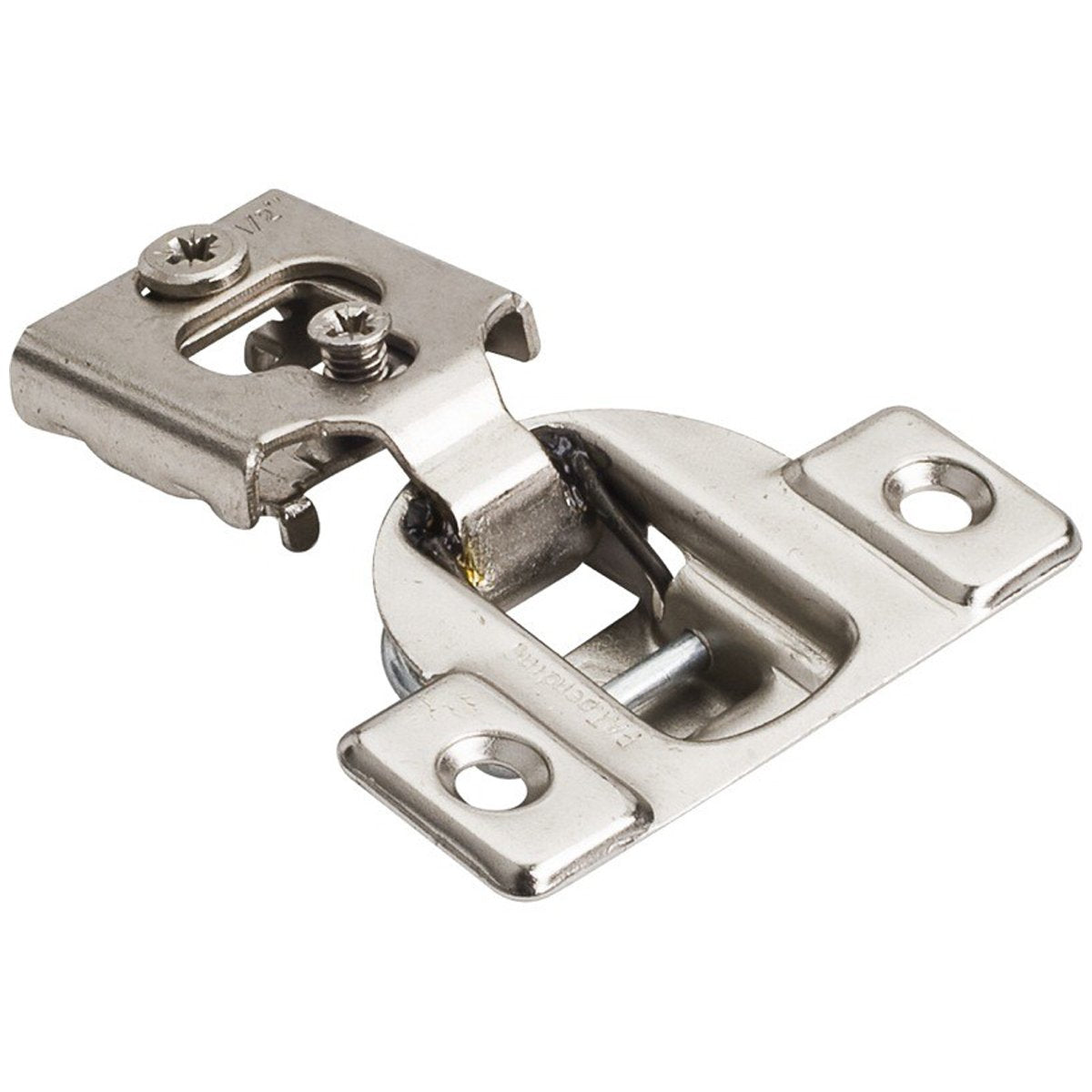

Hardware Resources Economical 1/2" Overlay Self-close Compact Hinges in Polished Nickel

Sold out
Original Price $1.28
Current Price $1.15
SKU 3390
Availability: translation missing: en.general.icons.icon_check_circle icon Out of stock

Hardware Resources' most economical, yet field proven compact hinge is the 3390 Series. It's hard to go wrong with this industry standard compact hinge. 1/2" Overlay Compact Concealed Hinge with Cam Adjustments and 4 tabs without Dowels. US Pat 7.653.967.

Benefits & Features:

  • Grade 2 ANSI/BHMA certified to ANSI 50,000 cycles
  • One piece compact assembly with vertical screw adjustment and horizontal and depth cam adjustment
  • 105 degree opening angle
  • Single pivot point
  • Cold rolled steel with nickel plating
  • 45 mm boring pattern
  • #7 x 5/8" pan washer head screw (7X0580WCQ) recommended
  • 6-Way adjustability: Horizontal, depth and vertical

Product Details:

  • Configurable Collection: Economical Self-close Compact Hinge
  • Application: Face Frame
  • Finish: Polished Nickel
  • Finish Group: Silver/Nickel/Chrome
  • Attachment Type: One Piece
  • Hinge Adjustment Type: Cam
  • Hinge Adjustment: 6-Way Adjustment
  • Hinge Dowels: Without
  • Recommended Screws: #7 x 5/8" pan washer head screw (7X0580WCQ)
  • Primary Material Details: Steel
  • Country of Origin: China
  • Certification: Grade 2 ANSI/BHMA Certified to ANSI 50,000 Cycles
  • Ship Type: FedEx
  • Warranty Period: Lifetime

Measurements:

  • Hinge Overlay (in): 0.5
  • Hinge Degree of Opening: 105
  • Hinge Boring Hole Pattern or Mount Centers (mm): 45

Weight (lbs): 0.1
