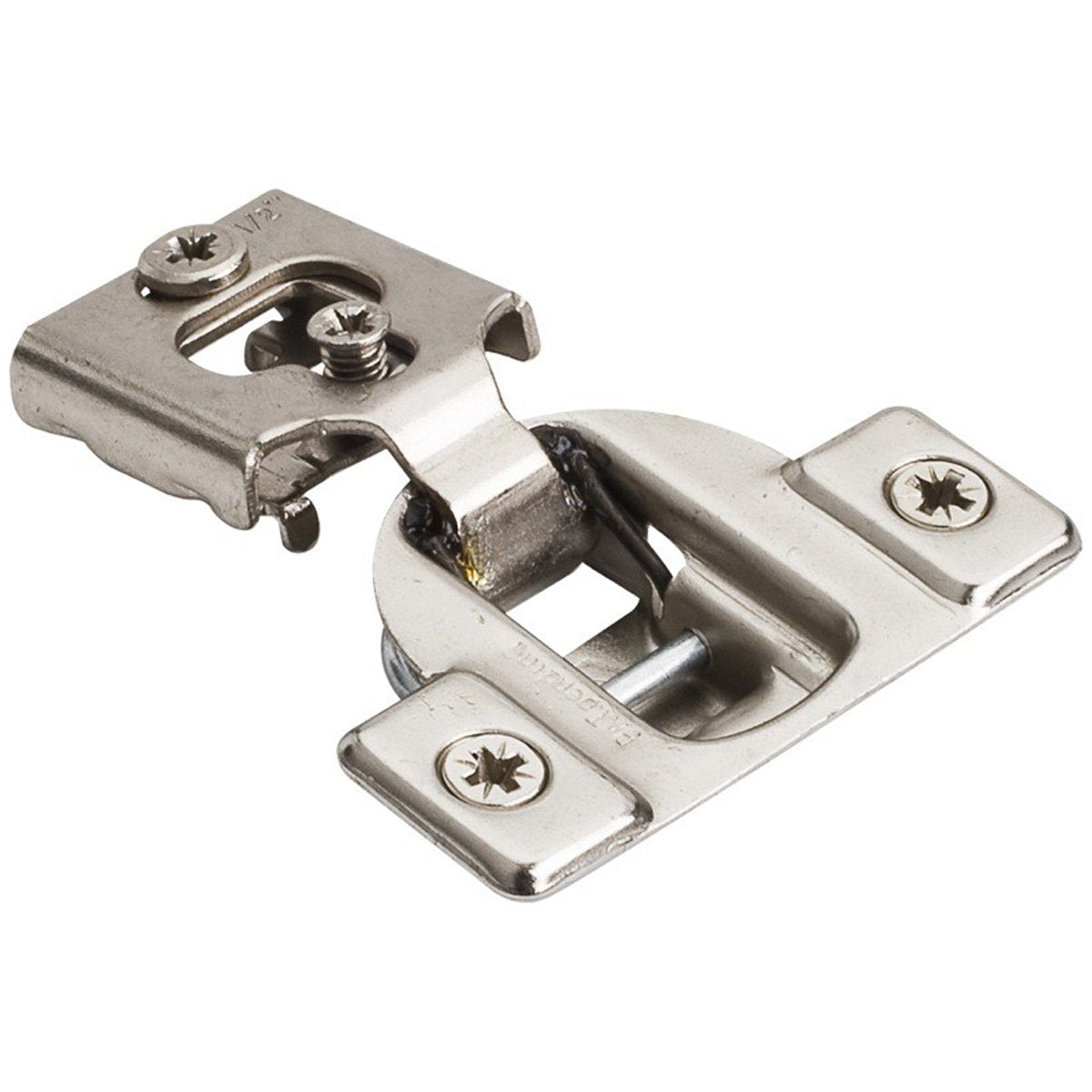

Hardware Resources Steel Economical 1/2" Overlay Self-close Compact Hinges

Hardware Resources' most economical, yet field proven compact hinge is the 3390 Series. It's hard to go wrong with this industry standard compact hinge. Economical 1/2" Overlay Self-close Cam Adjustable Face Frame Compact Hinge with 8 mm Dowels.

Benefits & Features:

• Grade 2 ANSI/BHMA certified to ANSI 50,000 cycles
• One piece compact assembly with vertical screw adjustment and horizontal and depth cam adjustment
• 105 degree opening angle
• Single pivot point
• Cold rolled steel with nickel plating
• 45 mm boring pattern
• #7 x 5/8" pan washer head screw (7X0580WCQ) recommended
• 6-Way adjustability: Horizontal, depth and vertical

Product Details:

• Configurable Collection: Economical Self-close Compact Hinge
• Application: Face Frame
• Finish: Polished Nickel
• Finish Group: Silver/Nickel/Chrome
• Attachment Type: One Piece
• Hinge Adjustment Type: Cam
• Hinge Adjustment: 6-Way Adjustment
• Hinge Dowels: Press-in
• Recommended Screws: #7 x 5/8" pan washer head screw (7X0580WCQ)
• Primary Material Details: Steel
• Country of Origin: China
• Certification: Grade 2 ANSI/BHMA Certified to ANSI 50,000 Cycles
• Ship Type: FedEx
• Warranty Period: Lifetime

Measurements:

• Hinge Overlay (in): 0.5
• Hinge Degree of Opening: 105
• Hinge Boring Hole Pattern or Mount Centers (mm): 45

Weight (lbs): 0.11
